Project Description

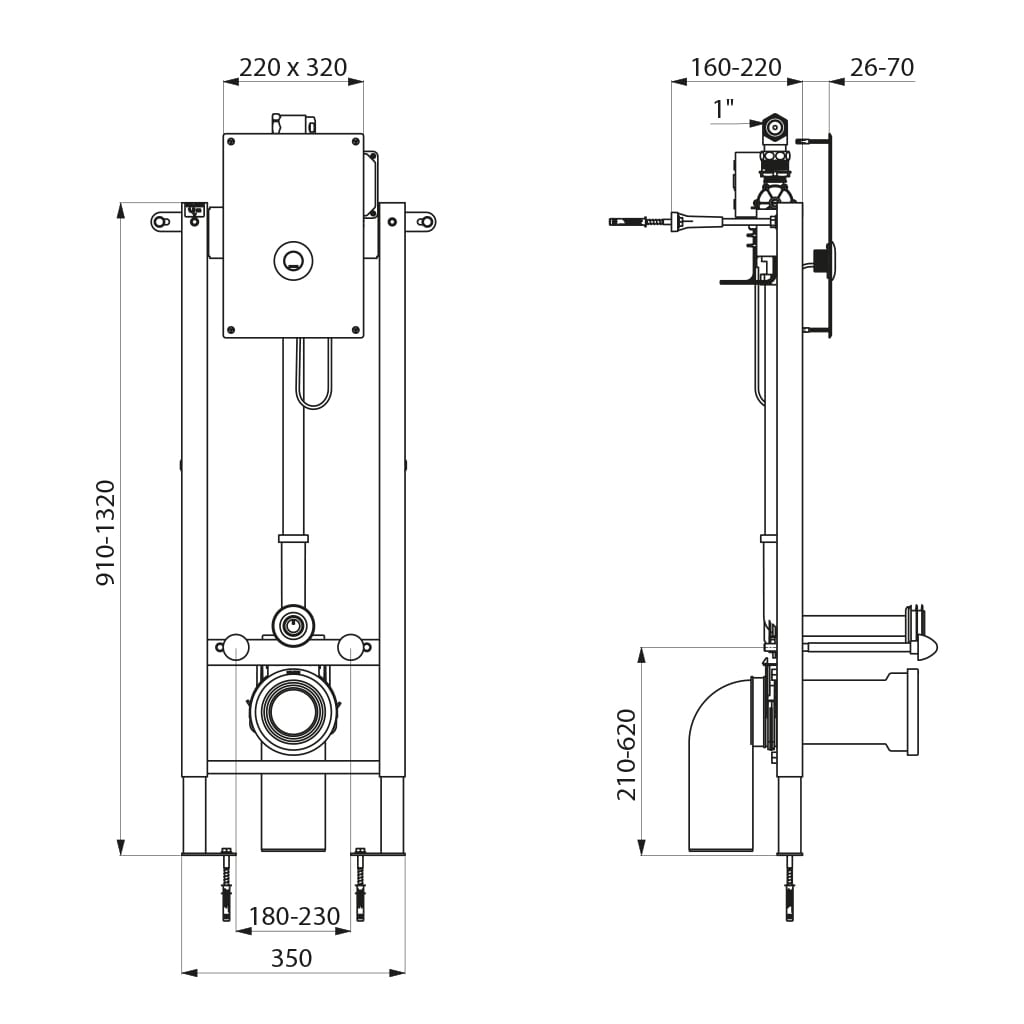

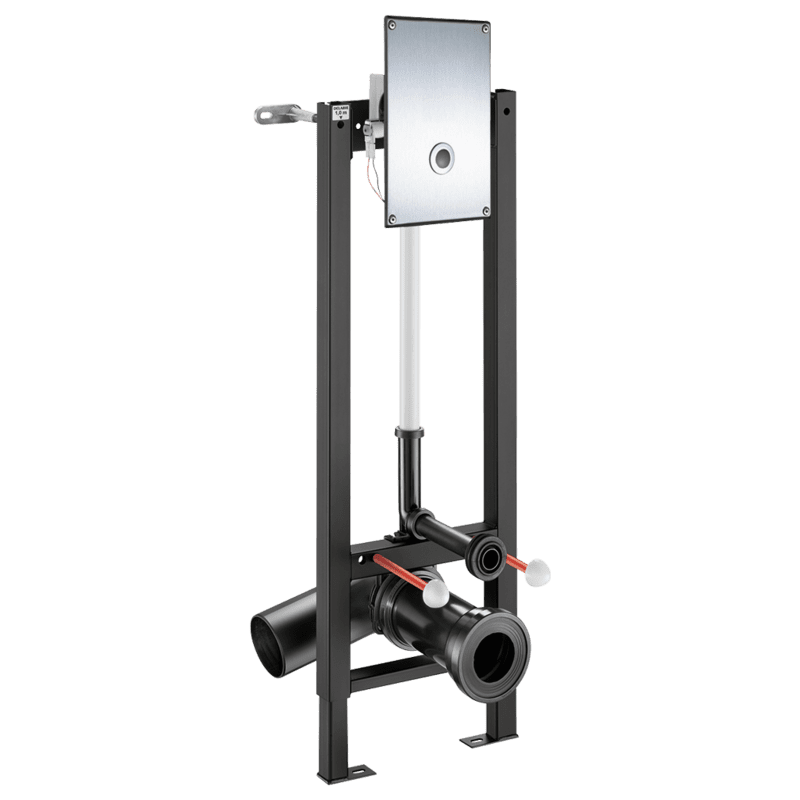

TEMPOFIX 3 wall-mounted frame system for WCs
Ref. 547000-546412

Wall-mounted frame system W. 350mm for wall-hung electronic WC:
Black epoxy coated steel frame.
Fixes to load-bearing floors.
Frame height can be adjusted from 0 to 200mm (with 1m mark).
Ø 32mm flush tube with Ø 55mm connection washer.
Ø 100mm soil pipe with waterproof seal, with 2 settings positions.
Supplied pre-mounted.
Conforms to standard NF D12-208.
For drywall 26 – 70mm.

Fitted with TEMPOMATIC F1″ electronic direct flush valve:
Stainless steel plate 320 x 220mm.
Shockproof infrared presence detection sensor.
Flush is triggered by user nearing hand or when user leaves.
Time flow ~7 sec can be adjusted 3 – 12 sec.
230/12V transformer.
Stopcock and volume/flow rate adjuster.
Detection distance can be adjusted by installer.
Technical characteristics: see TEMPOMATIC ref. 463326.

10-year warranty.
