Delabie 778755

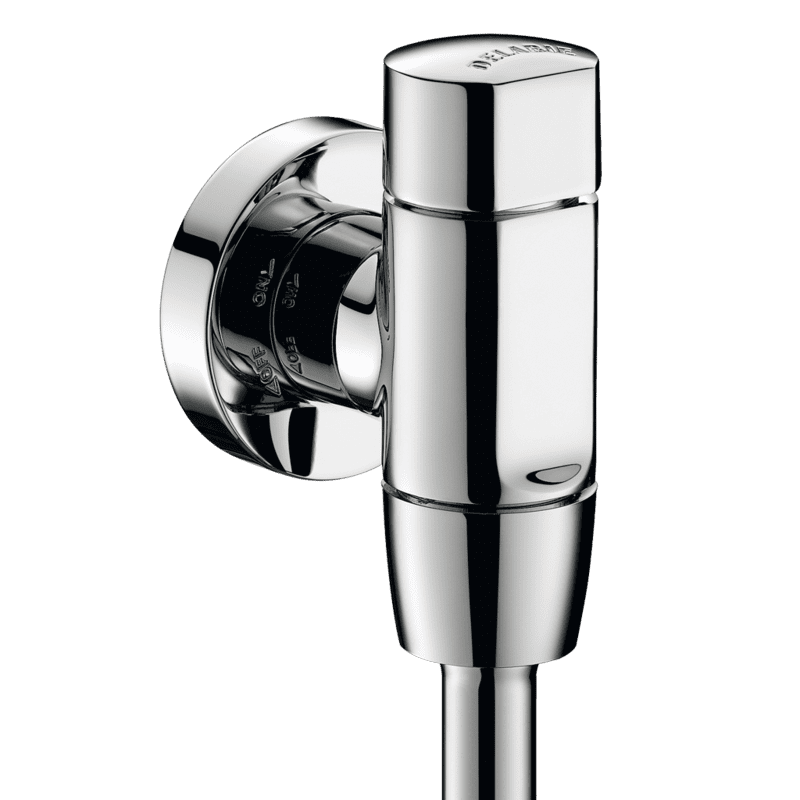

Exposed time flow urinal valve:
For standard clamp or siphon action urinals.
Soft-touch operation.
Time flow pre-set at 3 sec., can be adjusted from 3 to 7 sec.(patented).
Vacuum breaker.
Flow rate pre-set at 0.15 l/sec. at 3 bar, can be adjusted up to 0.3 l/sec.

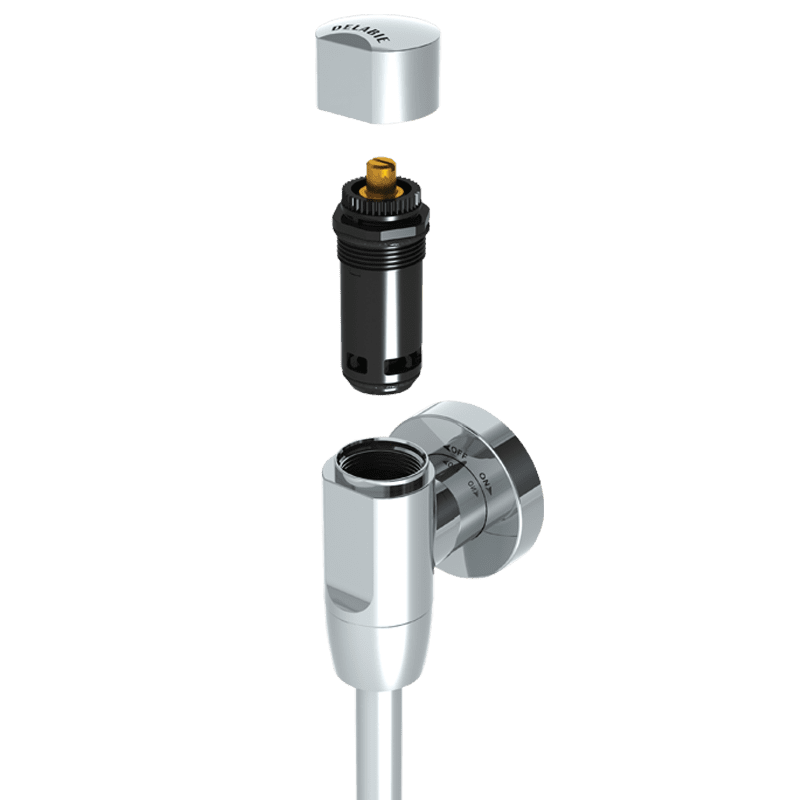

Innovative stopcock and flow rate adjustment system integrated in the wall plate (patented).
Conforms to the European standard EN 12541 (acoustic level class II).
Chrome-plated solid brass body M1/2″.
Wall-mounted wall plate.

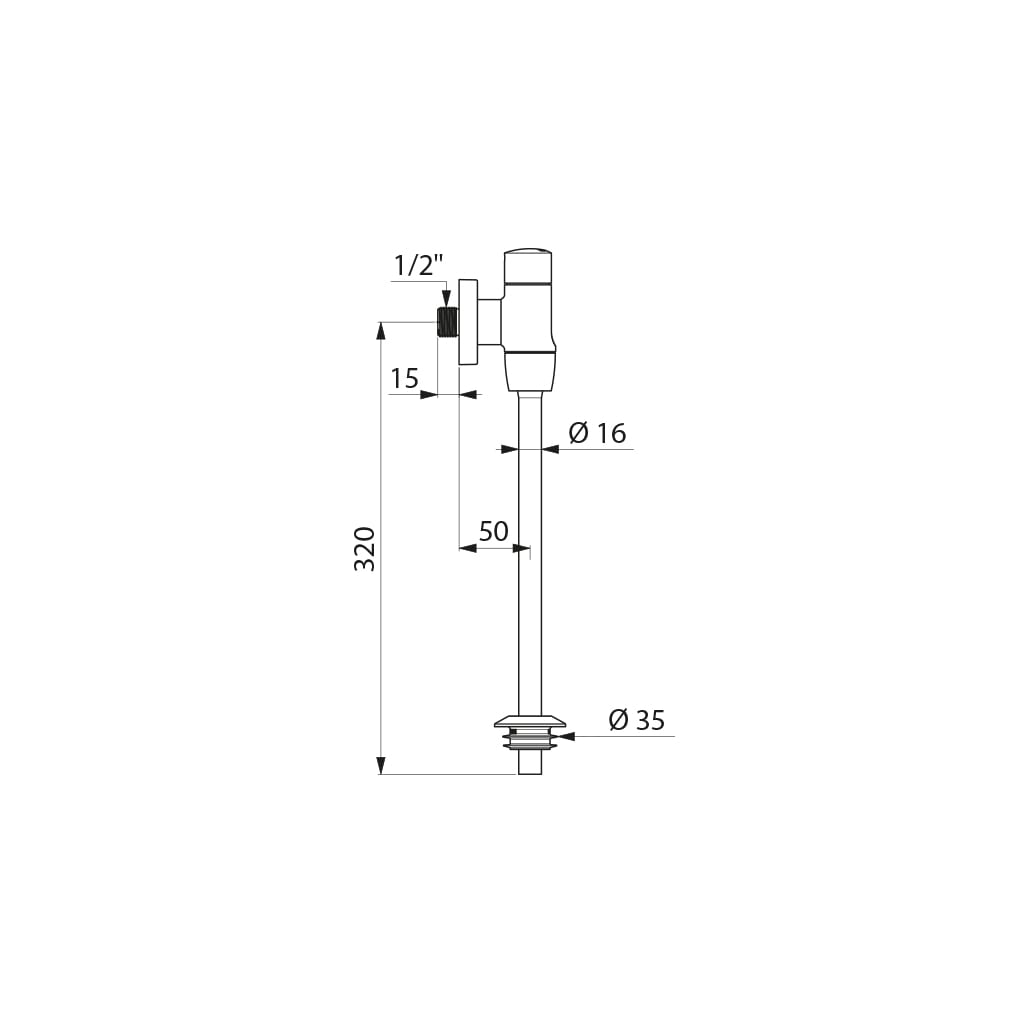

With a chrome-plated neck tube and connection washer Ø 35mm.
Angled for recessed inlet .
10-year warranty.
