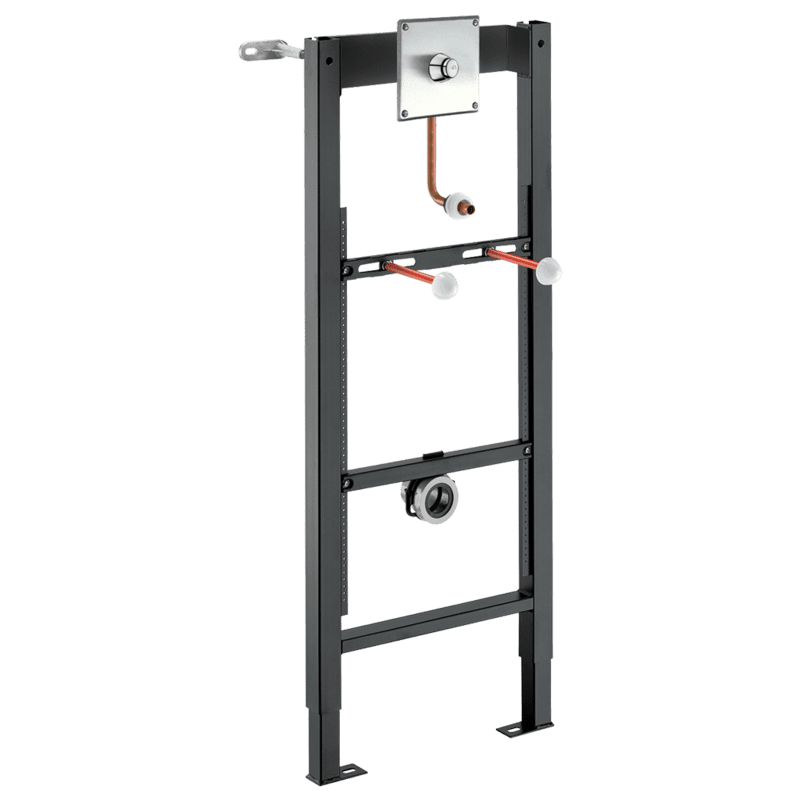

TEMPOFIX 3 frame system for urinals

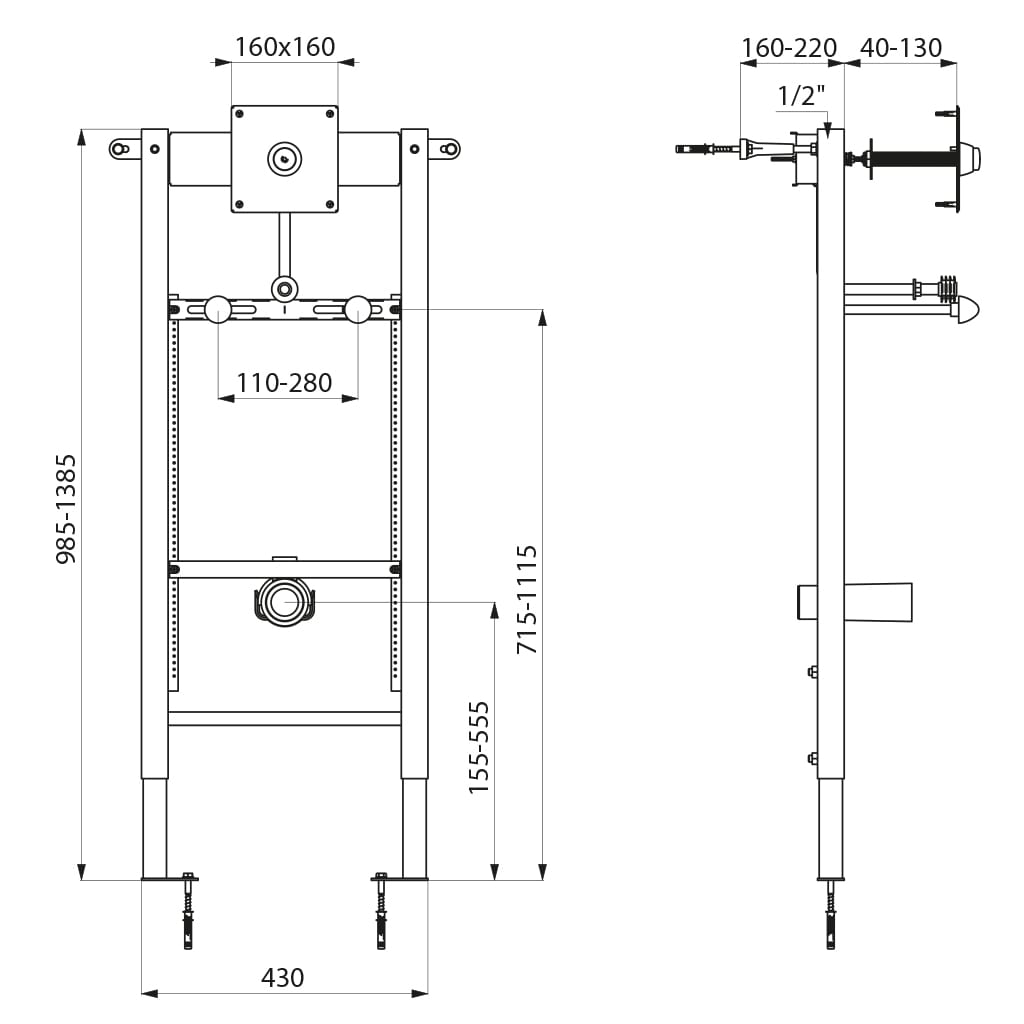

Frame system W. 430mm for urinals:
Black epoxy coated steel frame for wall-mounted installation.
Fixes to load-bearing floors and walls with supplied anchoring bolts.
Adjustable bracket from 100 – 280mm.
Frame height can be adjusted from 0 to 200mm.
Ø 50mm soil pipe with waterproof seal.
Conforms to standard NF D12-208.
Fitted with TEMPOSTOP M1/2″ time flow valve:
Solid brass valve body.
Time flow ~3 sec.
Flush tube with connection washer Ø 35mm.
Stainless steel wall plate160 x 160mm.
For walls 40 – 130mm.
Technical features: see TEMPOSTOP urinal ref. 777924+777925.
