TEMPOFIX 3 self-supporting frame system for WCs
For Walls 20 – 40 mm Ref. 578305-578212
For Walls 45 – 65 mm Ref. 578405-578212
For Walls 80 -130 mm Ref. 578305-578230

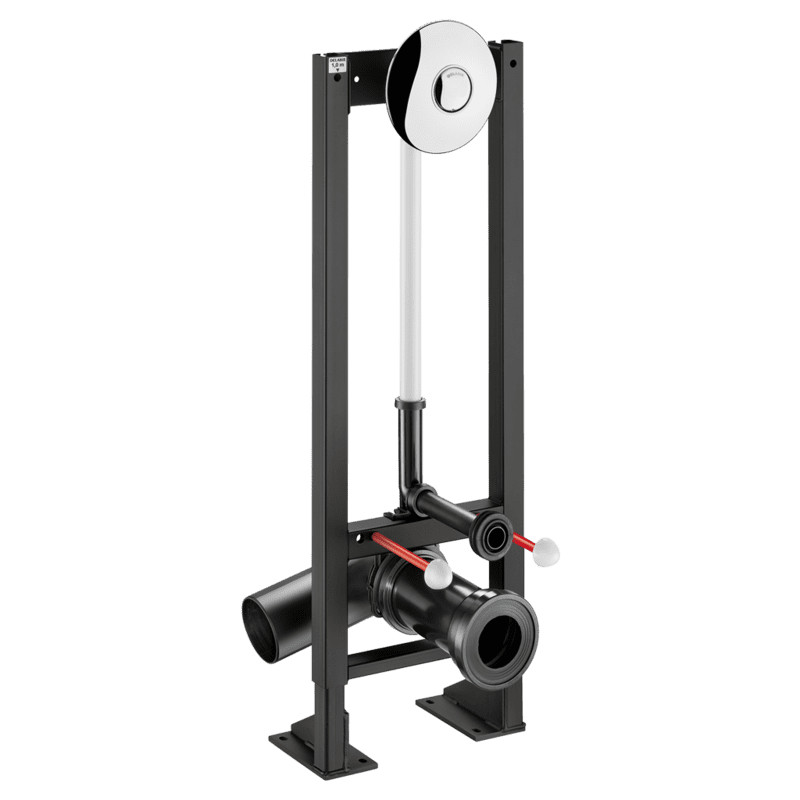

Self-supporting frame system W. 350mm for wall-hung WC:
Black epoxy coated steel frame.
Fixes to load-bearing floors.
Frame height can be adjusted from 0 to 200mm (with 1m mark).
Ø 32mm flush tube with Ø 55mm connection washer.
Ø 100mm soil pipe with waterproof seal, with 2 settings positions.
Conforms to standard NF D12-208.
For drywall 20 – 40mm.
Fitted with TEMPOFLUX 2 direct flush time flow valve:
Ø 195mm chrome-plated wall plate with concealed fixings.
6L single flush (can be adjusted to 9L).
Stopcock and flow rate/volume adjuster.
Solid brass body and shockproof, scale-resistant mechanism.
In-line inlet M3/4″.
Acoustic level conforms to European standard EN class II.
Technical features: see TEMPOFLUX 2 ref. 762901.
