Project Description

Polished stainless steel plate       Ref. 543000-430000

Satin stainless steel plate              Ref. 543000-430010

White Epoxy coated plate              Ref. 543000-430020

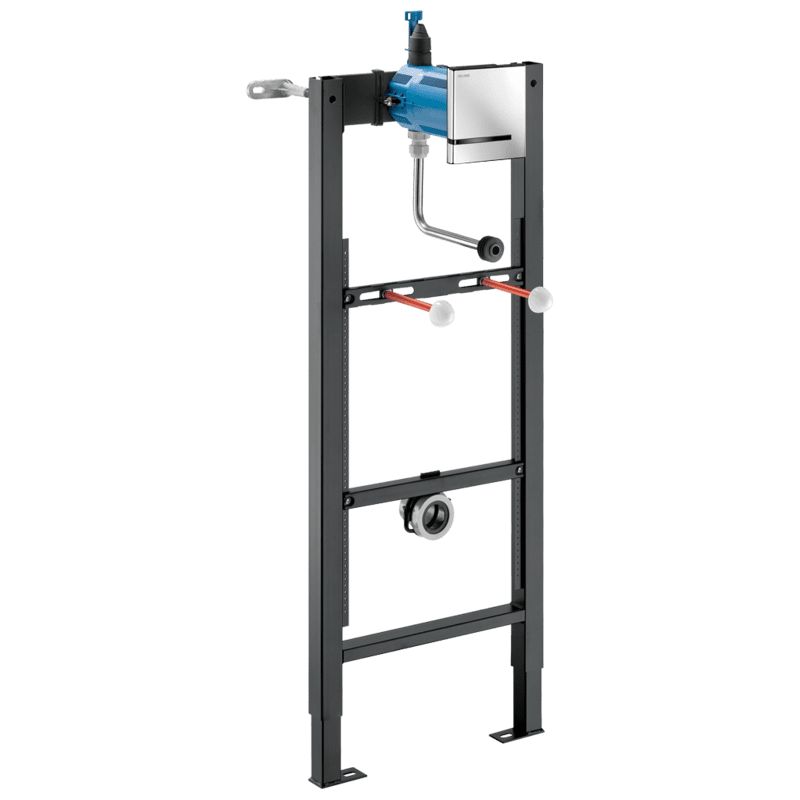

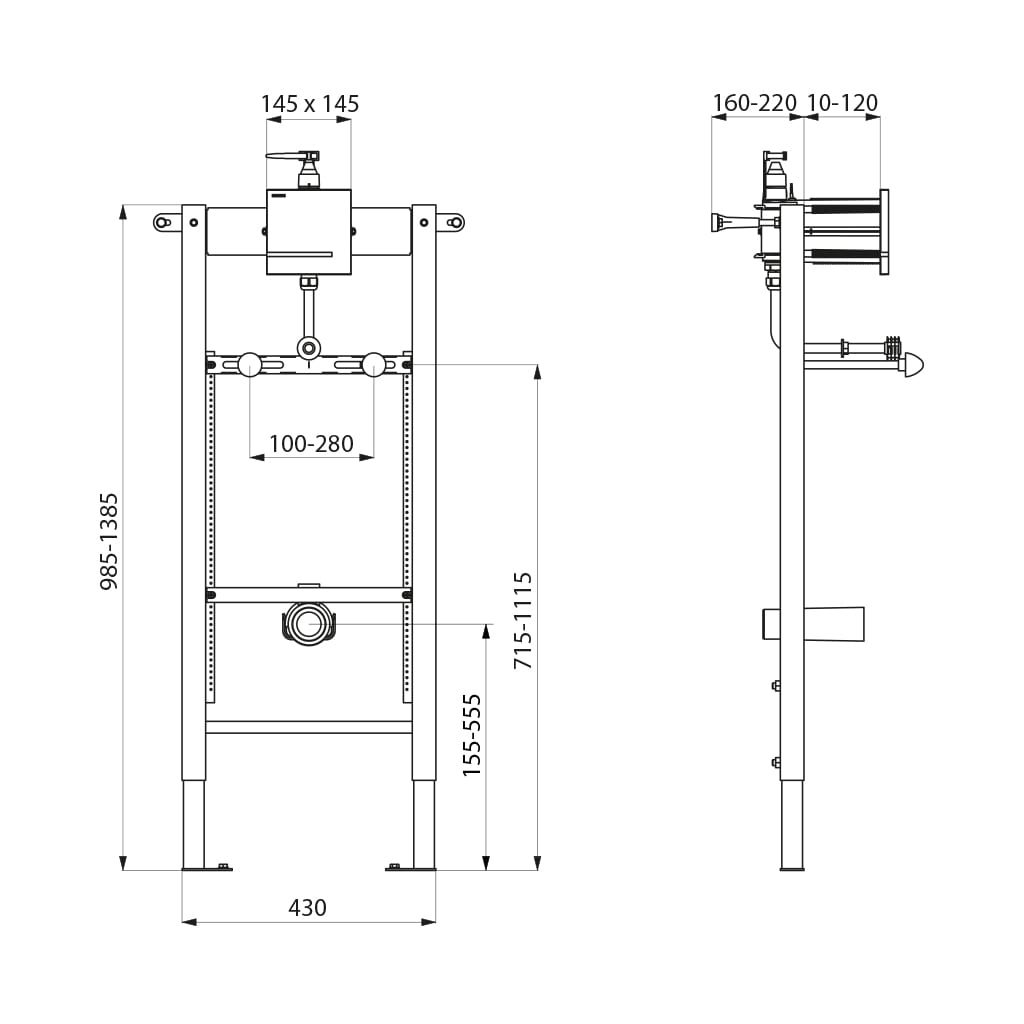

Frame system W. 430mm for urinals:
Black epoxy coated steel frame for wall-mounted installation.
Fixes to load-bearing floors and walls with supplied anchoring bolts.
Adjustable bracket from 100 – 280mm.
Frame height can be adjusted from 0 to 200mm.
Ø 50mm soil pipe with waterproof seal.
Supplied pre-mounted.
Conforms to standard NF D12-208.
Compatible with wall finishes 13 – 120mm.

Fitted with TEMPOMATIC 4 F1/2″ direct flush electronic valve:
230/6V mains supply (cable and transformer are supplied).
Bright stainless steel plate 145 x 145mm with embedded electronics.
Shockproof infrared presence detection sensor.
Waterproof recessing housing.
User is taken into account after 10 sec. of presence.
3 programmes (rinsing volume can be adjusted according to the type of urinal).
High frequency mode (exclusive to DELABIE).
Flow rate pre-set at 0.15 L/sec at 3 bar, can be adjusted.
Hygienic duty flush every 12 or 24 hours (or Off) after last use: prevents backflow.
Connection with Ø 35mm connection washer (for standard urinal valves).
Technical features: see TEMPOMATIC urinal ref. 430PBOX-430016.

10-year warranty.
