Project Description

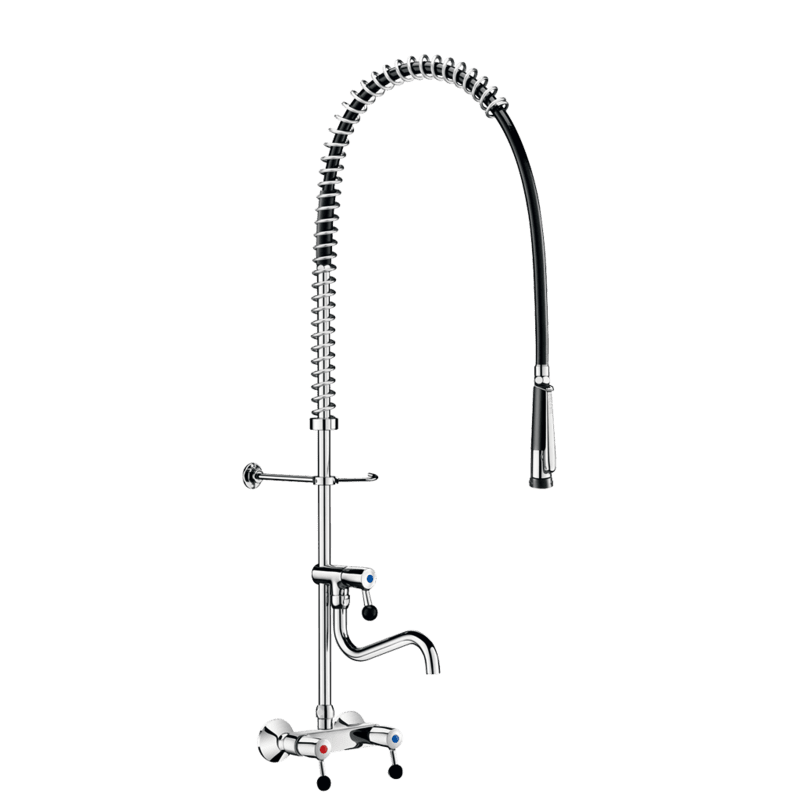

Wall-mounted pre-rinse set
Ref. 5634

Complete pre-rinse set with bib tap includes:
• Wall-mounted mixer, F3/4″ with adjustable centres with:
– Valve heads with reinforced mechanisms with ergonomic control levers.
– M1/2″ M3/4″ offset connectors.
– Non-return valves integrated in the mixer.
• Bib tap with:
– Swivelling, tubular spout L. 200mm.
– 25 lpm full flow rate achieved within 90°.
– Valve head with reinforced mechanism with ergonomic control lever.
• Black, scale-resistant M1/2″ hand spray with adjustable jet and 9 lpm flow rate at the outlet.
• Black, reinforced, food-grade flexible hose L.0.95m.
• 3/4″ brass column.
• Adjustable wall bracket.
• Stainless steel spring guide.
• 10-year warranty.
