Project Description

TEMPOMATIC dual control WC
Ref. 464PBOX-464006

TEMPOMATIC waterproof, recessed, dual control, electronic valve for direct flush:
Battery-operated with 123 6V Lithium batteries.

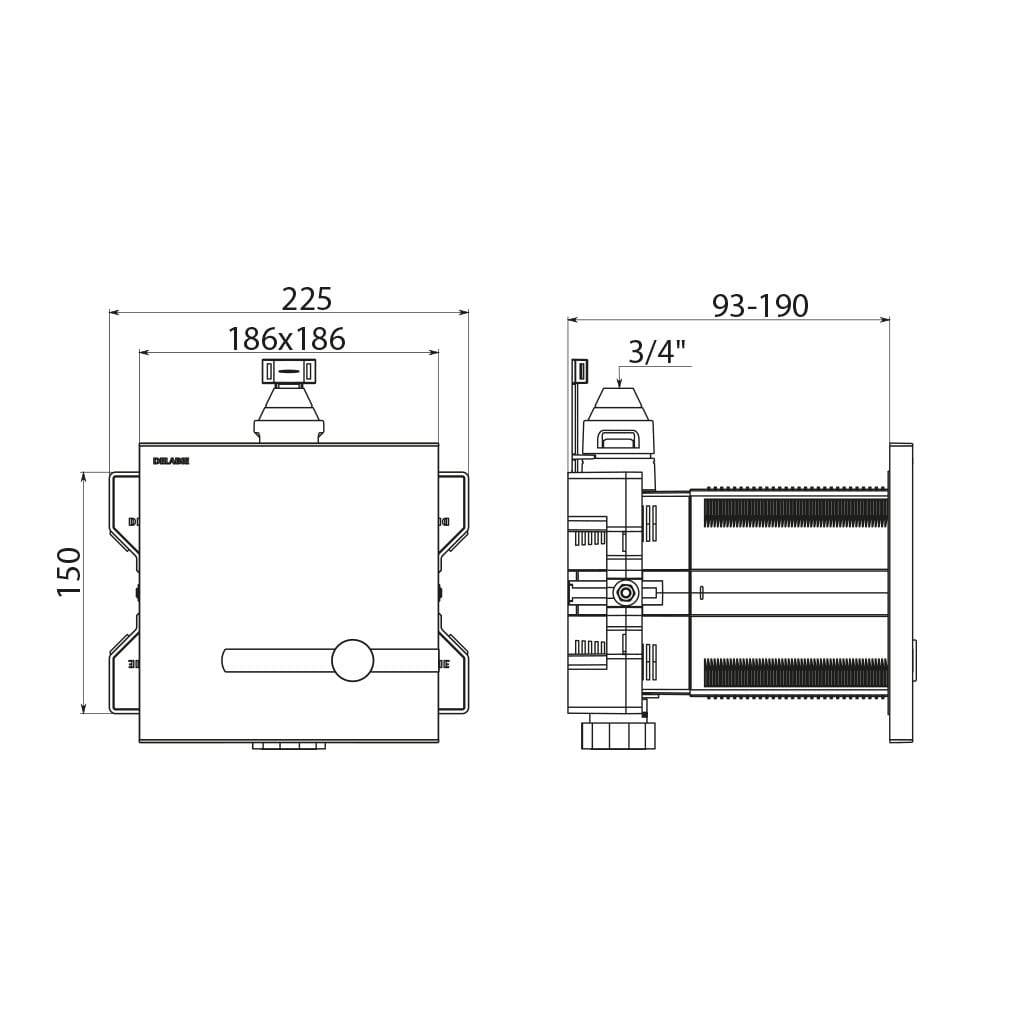

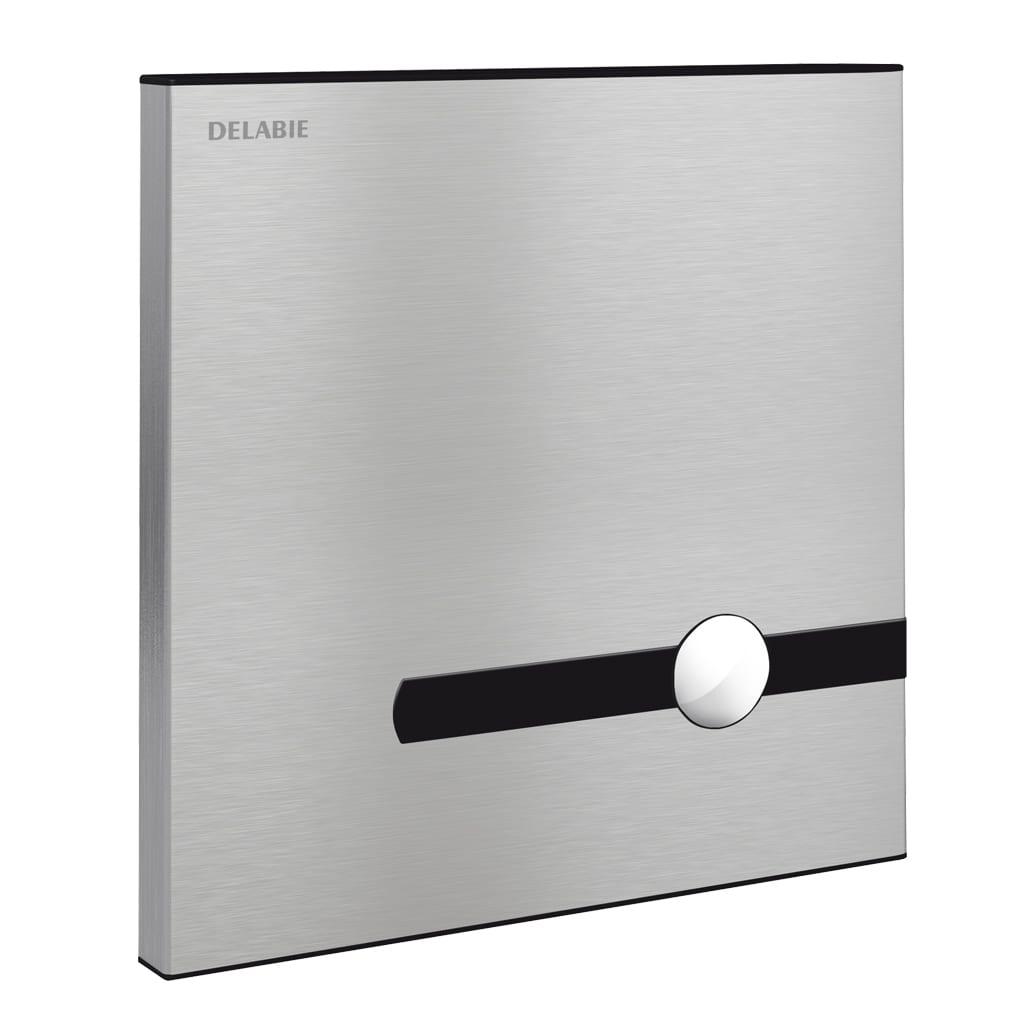

Stainless steel wall plate 186 x 186mm and chrome-plated metal button.
Waterproof recessing housing:
– Collar with integrated seal.
– Hydraulic connection from the exterior and maintenance from the front.
– Multiple installation options (rails, solid walls, panels).
– Compatible with wall finishes from 10 – 120mm (while respecting the minimum recessing depth of 93mm).
– Supply can be standard or “pipe-in-pipe”.
– Stopcock and flow rate adjustment, starter unit and solenoid vale all integrated and can be accessed from the front.
– TEMPOMATIC flush valve F3/4″ is compatible with sea water and grey water.
– Backflow prevention device inside the housing.
– Supplied in 2 kits: system can be flushed safely without the sensitive elements.
Shock-resistant infrared presence detection sensor.
Activates after 10 seconds of presence detection.
Voluntary activation (AB push-button) or automatic activation after the user leaves.
Independent push-button: the flush works even if the electrical supply is shut-off.
“Intelligent” automatic flush (adjusts the flush volume according to the level of activity).
3 programmes (flush volume can be adjusted according to the type of WC pan).
Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF) after the last use.
Suitable for rimless WC pans.
10-year warranty.
