Project Description

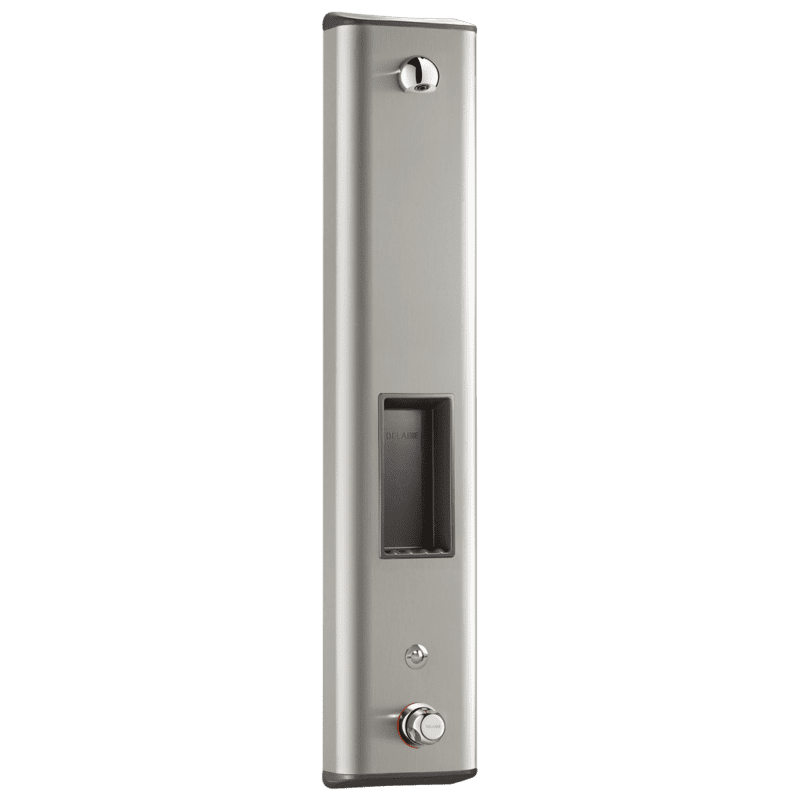

SECURITHERM shower panel
Ref. 792504

Electronic thermostatic shower panel:
Large model stainless steel panel for surface mounting.
Top inlet via in-line stopcocks, M1/2″.
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: instant shut-off if cold water supply fails.
Thermal shocks are possible.

220/6V mains supply.
To operate, press the electronic push-button.
Shuts off on demand or automatically after ~60 sec.
Duty flush (~60sec. every 24hr after the last use).
Flow rate set at 6 lpm at 3 bar.
Chrome-plated, tamperproof ROUND shower head with scale-resistant nozzle and automatic flow rate regulation.

M1/2″ connectors, concealed fixings, filters and non-return valves.
Integrated soap dish.
10-year warranty.
