Project Description

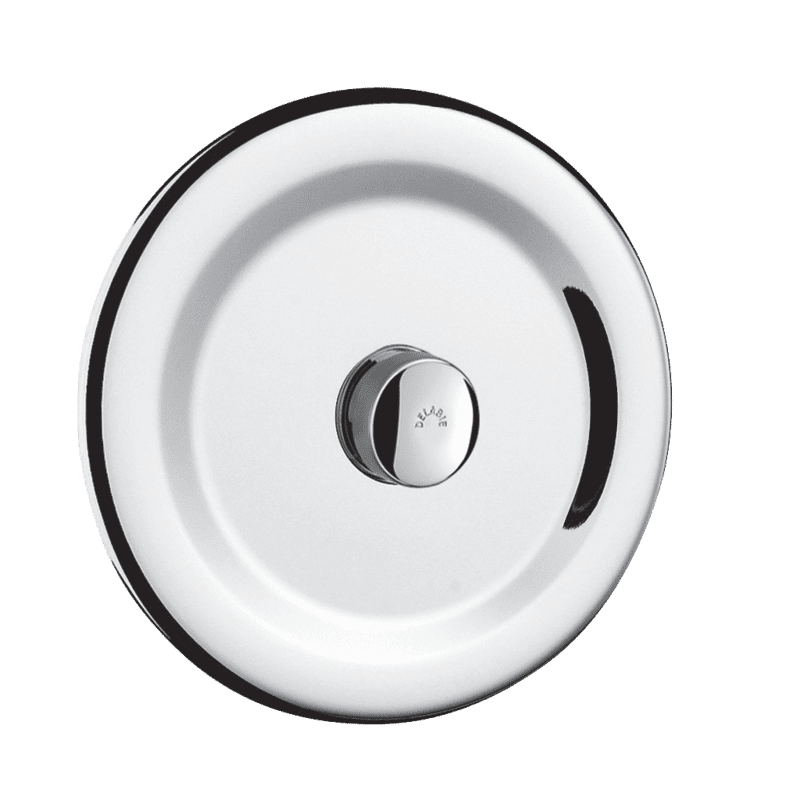

TEMPOFLUX 1 direct flush valve
Ref. 761900

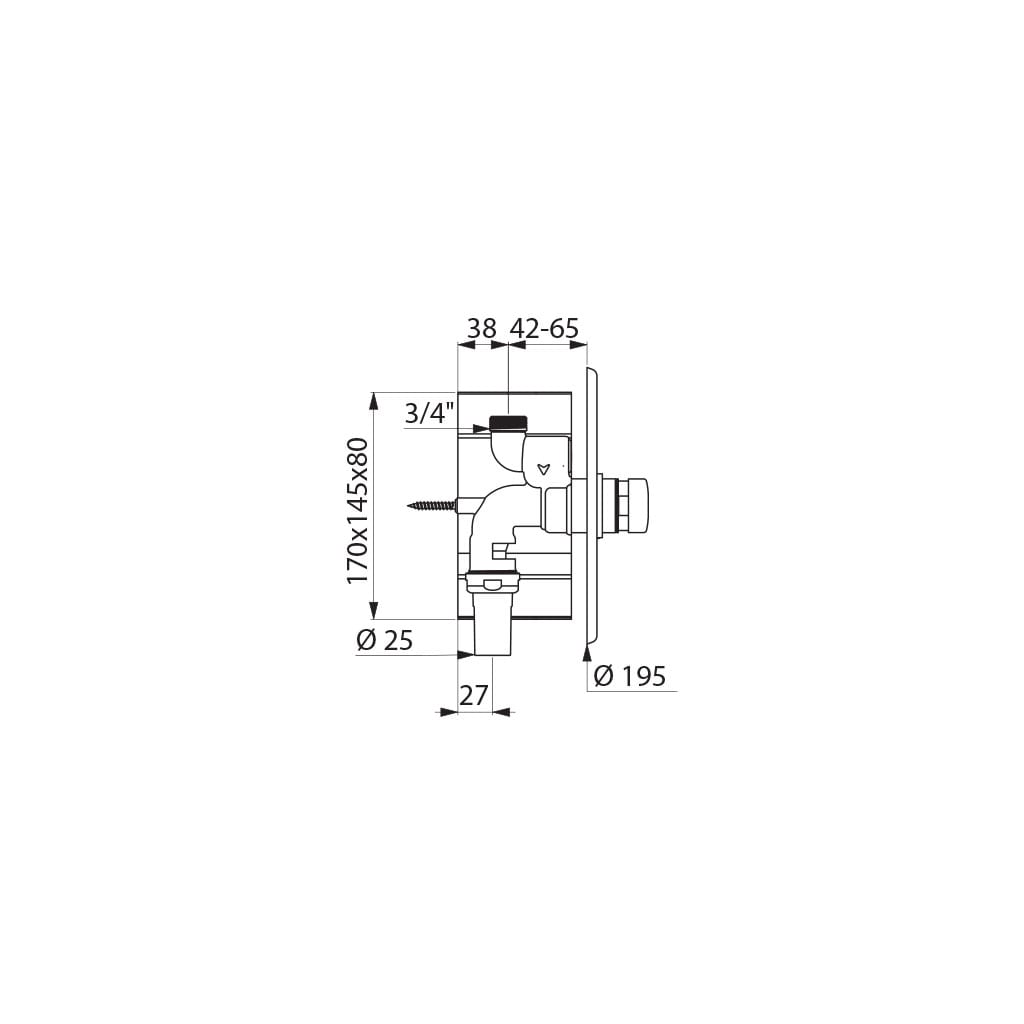

Recessed time flow valve for direct flush:
Multipurpose recessing housing.
Chrome-plated brass wall plate Ø 195mm.
Soft-touch operation.
Time flow ~7 sec.
Vacuum breaker.
Integrated stopcock and flow/volume rate adjuster.
Solid brass body and chrome-plated push-button.
In-line inlet M3/4″.
Outlet connection for PVC tube Ø 26/32mm.
This model does not have a waterproof recessing housing. The installer must ensure that the recessing area is waterproofand any leaks or condensation can drain away (see installation guide).
10-year warranty.
