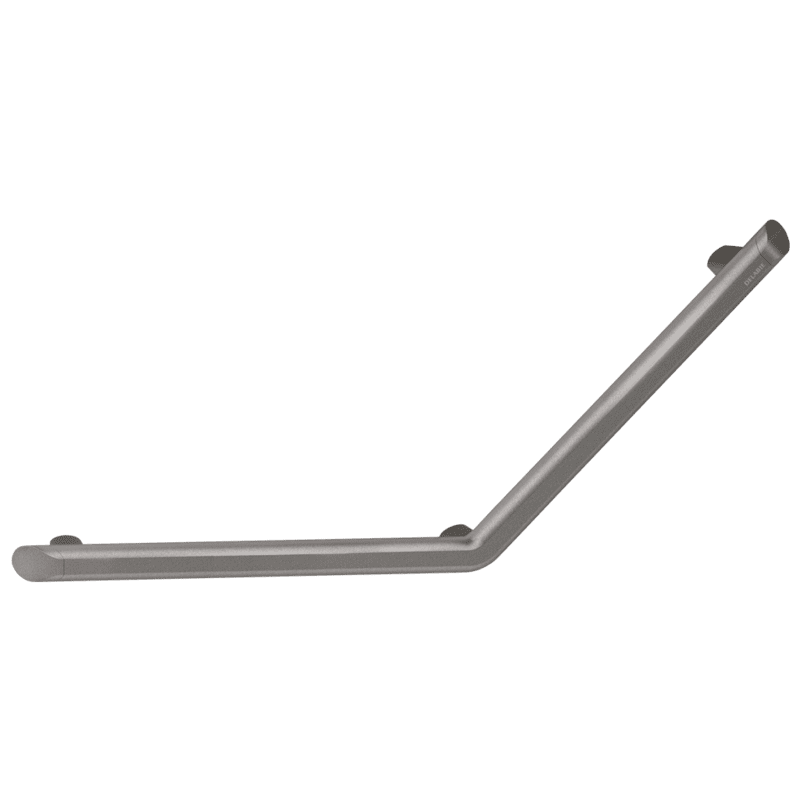

Be-line angled grab bar 135°, Ø 35mm, 400 x 400mm
Ref. 511982C

Be-line angled grab bar 135°, Ø 35mm, for people with reduced mobility.

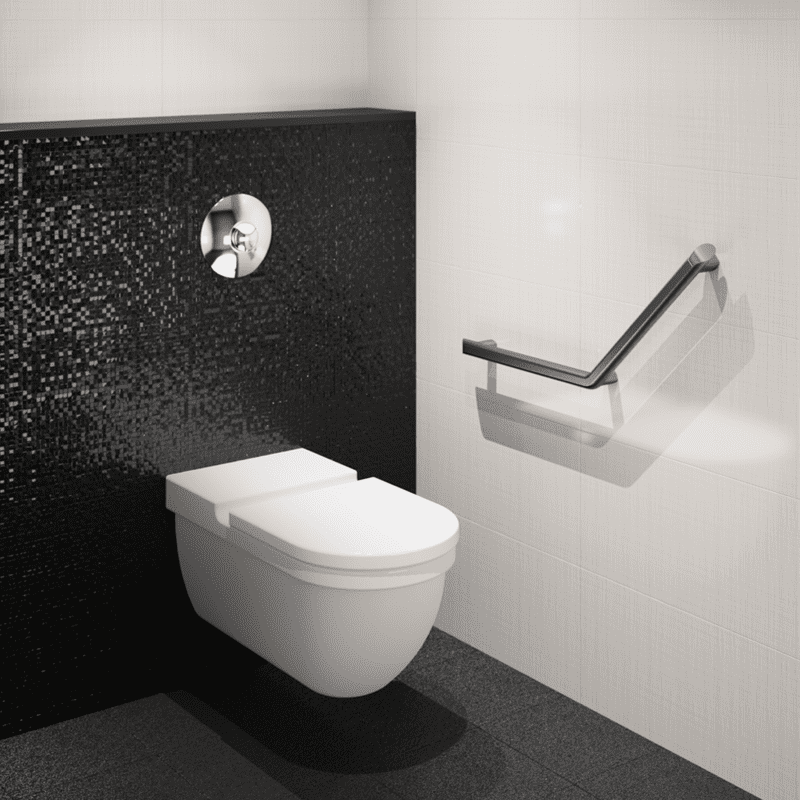

For use as a handrail (horizontal part) or as a grab rail (135° part), for WCs, showers or baths.
Universal for either left or right side.

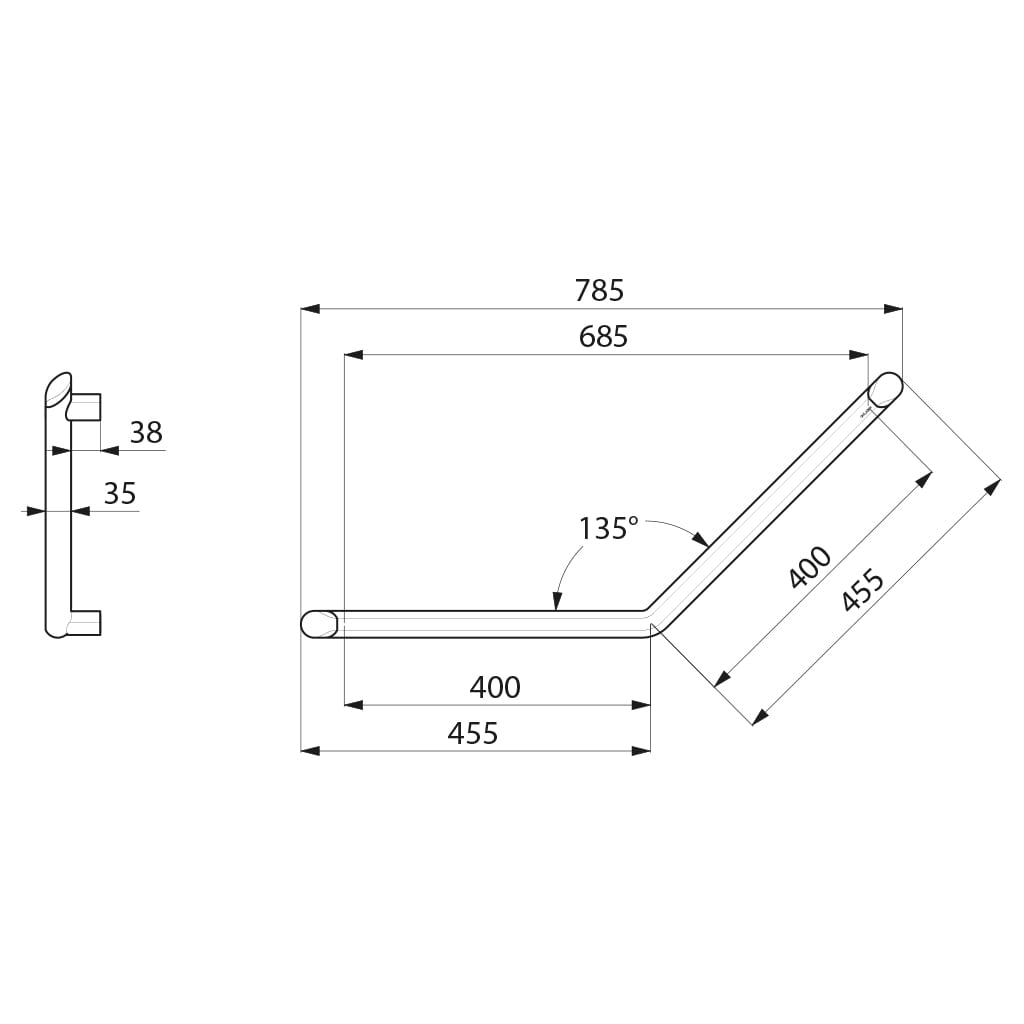

Dimensions: 400 x 400mm.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite finish; provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
3 fixing points prevent the hand from getting trapped and simplify installation.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.
10-year warranty. CE marked.
