Project Description

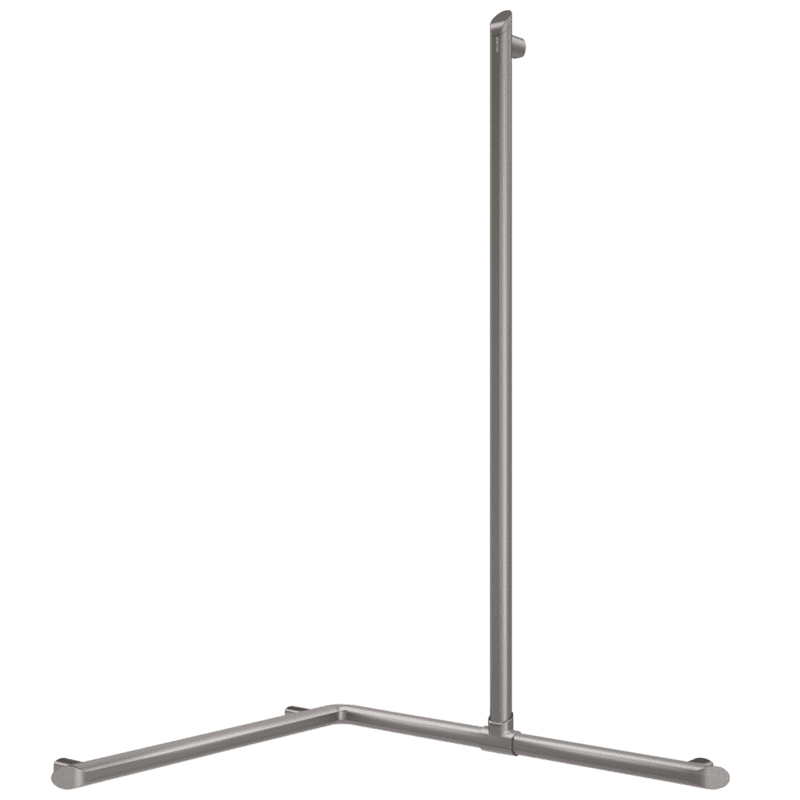

Be-line straight bar Ø 35mm with shower head rail
Ref. 511949C

Be-line grab bar with shower head rail Ø 35mm, for showers.
Use as a grab bar and to support the user in an upright position.
Helps and secures entry and movement in the shower.
Use as a shower rail by adding a sliding shower head holder and/or soap dish.
Upright position can be adjusted during installation: can be moved to the left or the right.
Can be installed with the upright on the left or the right.

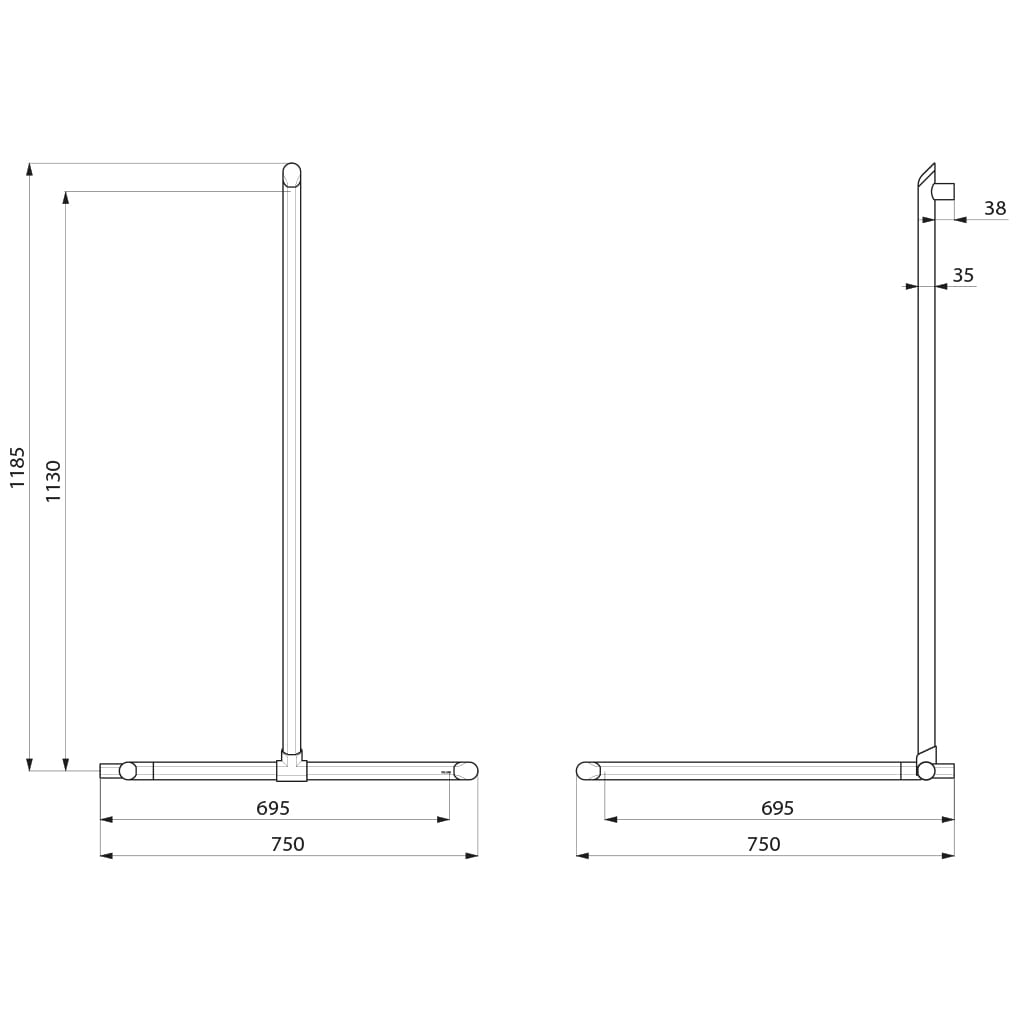

Dimensions: 750 x 750 x 1,130mm.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.
10-year warranty. CE marked.
