Project Description

TEMPOMATIC WC direct flush valve
Ref. 463150

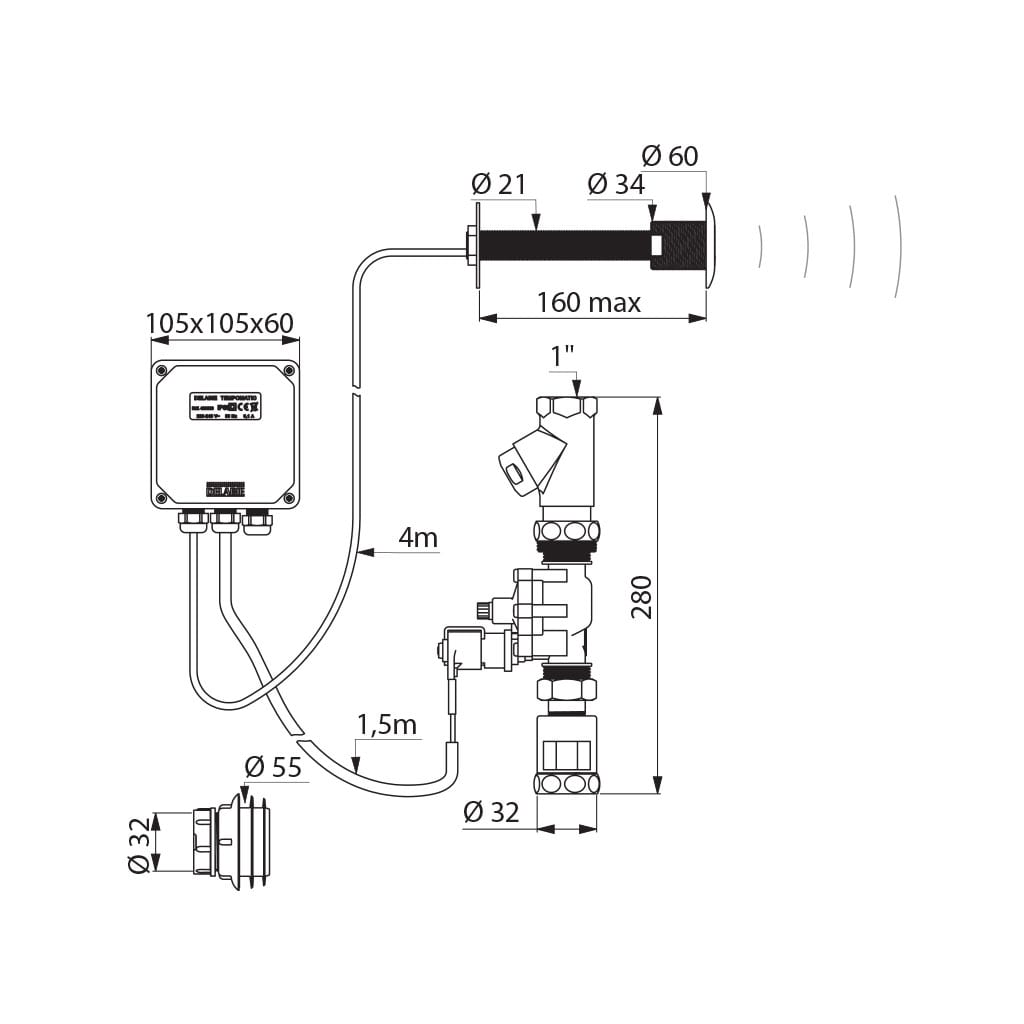

Cross wall electronic valve for direct flush:
IP65 independent electronic unit.
Mains supply with 1″ solenoid valve.
230/12V transformer.
Shockproof infrared presence sensor.
Voluntary or automatic flush.
Time flow ~7 sec., can be adjusted from 3 – 12 sec.
Detection distance, flow rate and flush volume can be adjusted.
Stopcock FF1″.
Vacuum breaker Ø 32mm
Connection washer Ø 32/55mm

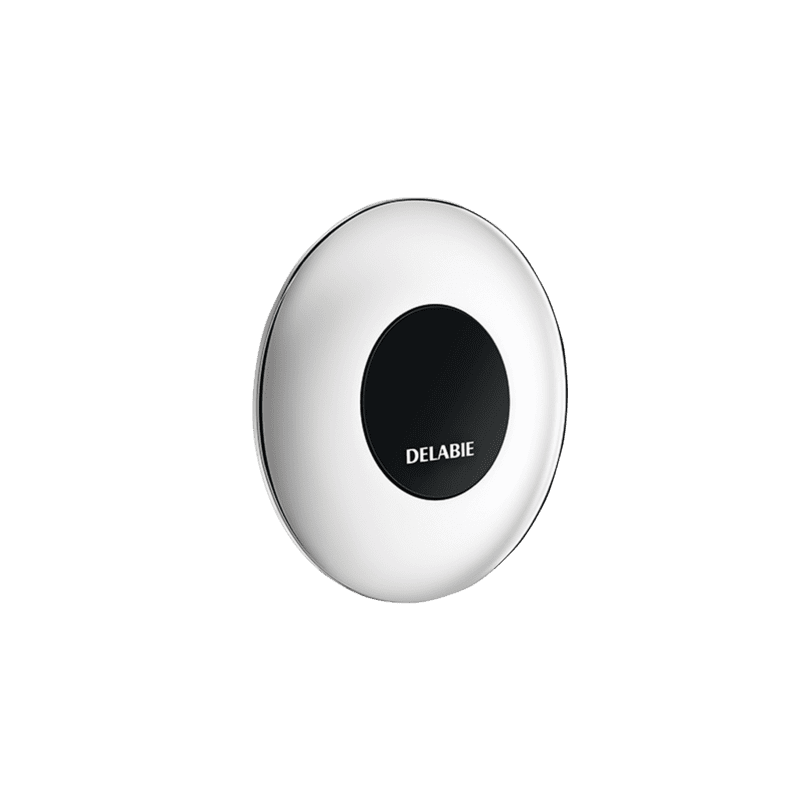

Chrome-plated wall plate which is flush to the wall.
Threaded rod can be cut-to-size.
For walls ≤ 160mm.
10-year warranty.
