Project Description

Wall-hung trough urinal
Ref. 130110

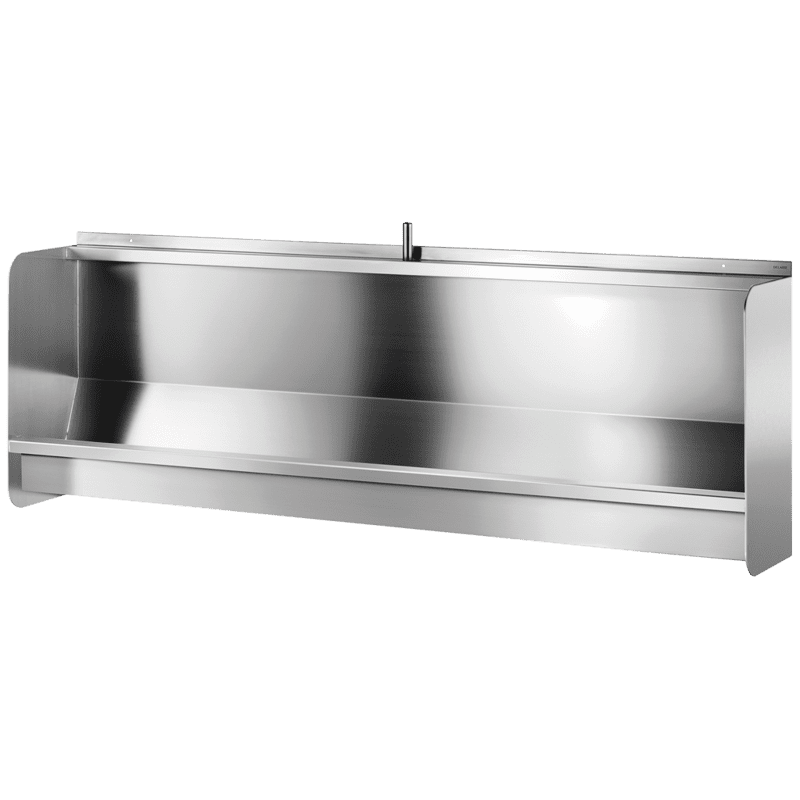

Wall-hung trough urinal.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Top water inlet M1/2″.
Supplied with 1 stainless steel sparge pipe for optimum rinsingof urinal surface.
Vertical waste outlet.
Waste outlet 1 ½”. Drainage on the right.
Supplied with fixing elements.
Without P trap valve.
Pipe diameter calculation: this urinal must deliver 0.9 L/sec. The installer will have to adjust the flow rate depending on the pressure.
Weight: 34kg.
[Formerly ref: 0311140000]
