Project Description

Hybrimatic Urinal with Hybrid Rinsing System
Ref. 130000

Wall-hung individual urinal with HYBRIMATIC hybrid rinsing system:
– Battery-operated by 123 6V Lithium batteries.
– Concealed fluid detector integrated into the urinal.
– Waste with membrane and no water level.
– Electronics integrated into the urinal.
– Micro-rinse for one second after each user in Eco mode (or 3 seconds in comfort mode).
– High frequency mode: the rinse takes place after the busy period.
– Hygienic duty flush for 7 seconds every 24 hours in Eco mode (or for 14 seconds every 12 hours in comfort mode): prevents smells and blockages in the pipework.
– Flow rate pre-set at 0.07 L/sec. at 3 bar, can be adjusted.
– Stopcock.

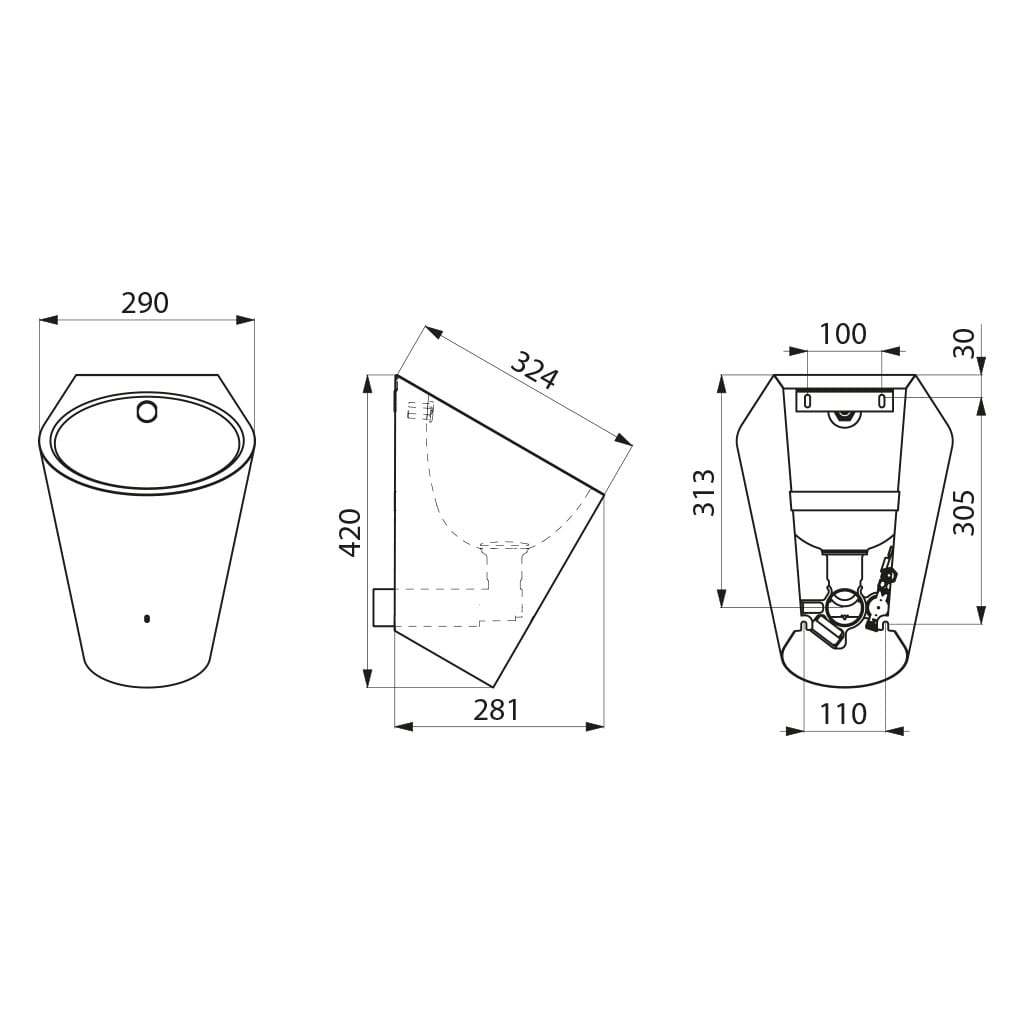

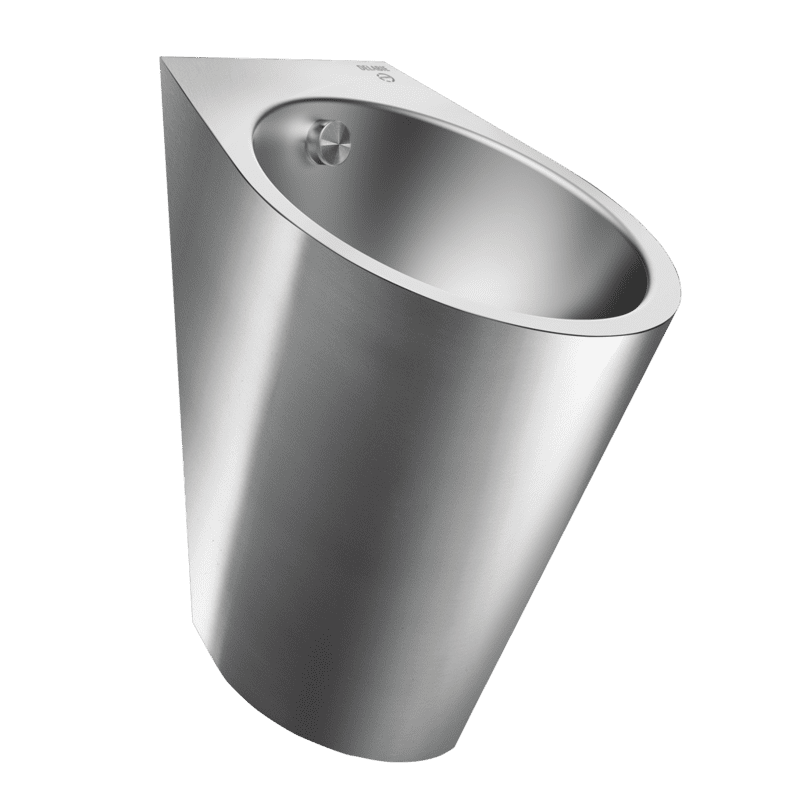

FINO wall-hung urinal:
– Compatible with all standard frame systems on the market.
– Bacteriostatic 304 stainless steel.
– Stainless steel thickness: 1.2mm.
– Rear water inlet.
– Recessed horizontal waste outlet.
– Access to technical elements from beneath the urinal.

Available 2nd half 2018.
