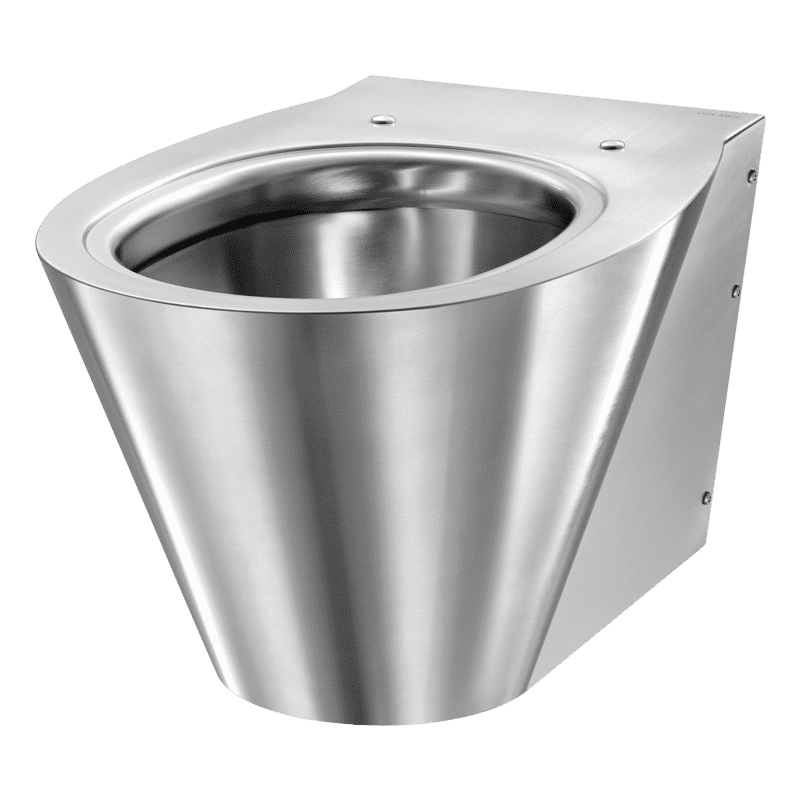

Wall-hung BCN S WC pan
Ref. 110110

Wall-hung WC pan.
Compatible with all standard frame systems available on the market.
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm
One-piece pressed WC bowl, seam-free for easy maintenanceand better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm
Horizontal waste outlet: Ø 100mm
Water saving: works with 4L or more of water.
Shrouded pan.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steelblanking caps when installed without toilet seat lid.
Quick and easy to install from the front thanks to a stainless steelmounting frame.
Supplied with fixing plate and 6 theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 12kg.
[Formerly ref: 0112110001]
